Panel PC


NTP17KLF-SUS&V11

SPanel-SUS

Intel® 6th / 11th Core i3 /i5 /i7 Skylake
Touch Screen Panel PC(5-wire Resistive)(Tempered Glass)
17" (1280x1024) Color TFT LCD
Fanless Dust-Proof
Stainess / 6-side IP65
제품도면 / 제품세부사양

S-Panel



Stainless Panel PC





S-Panel은 Stainless Steel의 재질로

구성되었으며 육면 방수(Full IP65)입니다.

식품가공, 제약, 위생시설 및 각종

산업현장에서 사용됩니다.











Specification





 Display  17” LED Backlight LCD/ TFT LCD Panel
 Resolution : 1280 x 1024 (4:3 aspect ratio)
 White Luminance : 300 cd /㎡
 Contrast Ratio : 1000
 Touch Screen  Capacitive Touch / Tempered Glass
 Touch interface : USB
 System

 Processor : Intel® 6th /11th Core i3/ i5/ i7 Skylake CPU
 BIOS : AMI uEFI BIOS, 128Mbit SPI Flash ROM
 System Chipset : H110
 I/O Chipset : NCT6106D(Nuvoton)
 Memory : DDR4L 4G (Basic option)
 Two 260-pin SODIMM DDR4 2133 Mhz Up to 32GB
 Storage : SSD Flash Disk 128G(MLC)(Basic Option)
 Option : SSD 256G/SSD 500G/ HDD 1TB
 Audio Code : Realtek ALC888S Support 5.1-CH Audio
 DVD-ROM : No.

 I/O

 Serial Port : 2x RS-232 (1x RS-485 or 1xRS-422 Selectable)

 Ethernet : 2xLAN(GbE)

(LAN1 - Intel I219LM Gbe LAN)

(LAN2 - Intel WGI211AT GbE LAN)
 USB : 2x USB 3.0

 Electrical and
 Operating
 Requorements

 Input : AC100~240V(Adaptor)_ DC12 / 24V (Option)

Power Consumption : DC12V / 10A(120W) or DC24V / 5A(120W)
 Operating Temperature : 0℃ ~50℃ (32℉ ~122℉)
 Storage Temperature : -20℃ ~60℃ (-4℉ ~140℉)
 Relative humidity :  0% ~ 90% noncondensing

Anti-Vibration : IEC60068-2-64, IEC60068-2-27

Electrostatic Discharge: EN61000-4-2 / KN32,35 2015 / Contact : 4kV / Air : 8kV


 Dimension : 455 x 365 x 86.5
 Weight :  9 Kg

 Manufacturer  iNewtek Inc.
 Made in Korea







Optional



Input NTP17KLF-SUS-12V , 24V
 O/S

 Window 10 IOT Enterprise (Kor/Eng) 64big

 (O/S Protefction UWF - Option)

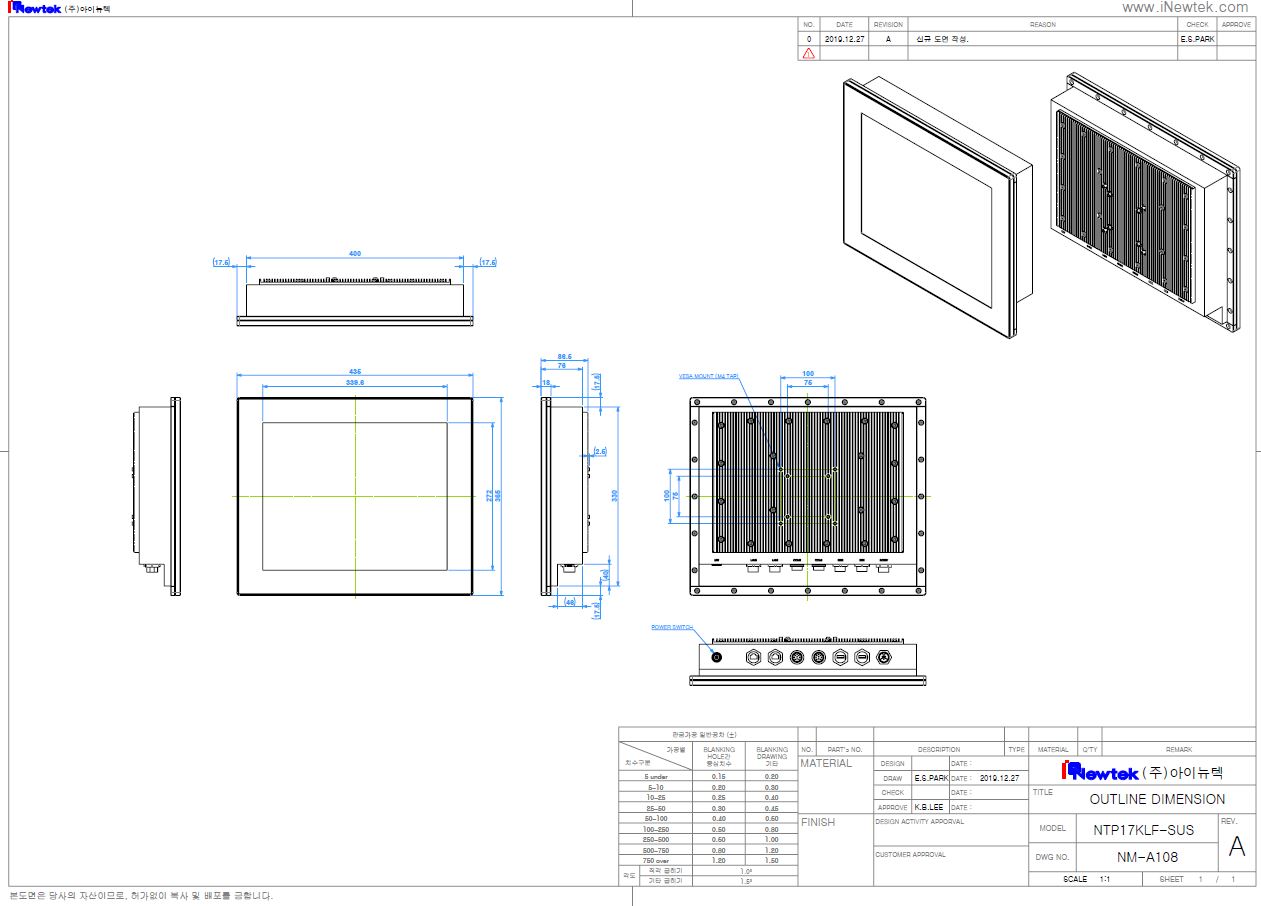

Product Assy















※자세한 치수는 카탈로그 참조 부탁드립니다.
