[신제품]NTP15KF-FHD-IP

Dpanel-15KF-FHD-IP

Intel 6th Core i7/ i5 / i3
15.6”(1920 x 1080) FHD(16:9 Wide)Color TFT LCD
Fanelss Dust-Proof Touch Screen panel PC
KC, CE Certification
제품도면 / 제품세부사양

IP-Panel



IP65 Panel PC

IP-Panel은 전면(front) 방수(Water-Proof)입니다.

음료공장, 육가공 공장 등에서 사용됩니다.

* S-Panel은 육면(Full) IP65입니다.

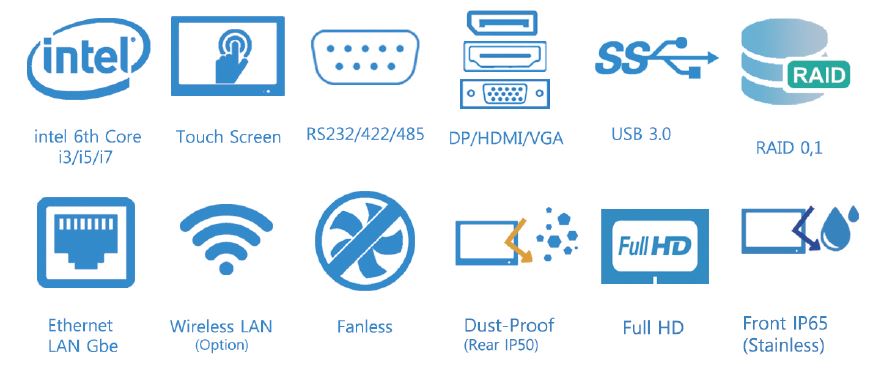

Features









Specification





 Display  15.6” LED Backlight LCD/ TFT LCD Panel
 Resolution : 1920 x 1080 FHD(16:9 Wide)
 White Luminance : 300 cd /㎡
 Contrast Ratio : 700
 Touch Screen  Capacitive
 Touch interface : USB
 System

 Processor : Intel 6th Core i3 / i5 / i7 CPU
 BIOS : AMI uEFI BIOS, 128Mbit SPI Flash ROM
 System Chipset : H110
 I/O Chipset : Nuvoton NCT6106D

 Memory : DDR4L 4G (Basic option)
 Two 260-pin SODDIM DDR4L 2133Mhz up to 32G

 Storage : SSD Flash Disk 128G (Basic Option)
 Option : SSD 256G/512G/1TB

 Multi Display : Dual

 Audio Code : Realtek ALC888S, 5.1-CH HD Audio Codec

 DVD-ROM : No.
 I/O

 Serial Port : 4x RS-232, (1x RS485, RS422)
 Ethernet : 2xLAN(GbE)
 (LAN1 - Intel I219LM GbE LAN)
 (LAN2 - Intel 82574L or Intel WGI211AT GbE LAN)
 USB : 4X USB 3.0
 HDMI : 1x HDMI (1.4a support max resolution 4096 x 2160

  @60Hz)
 DP : 1x DVI (Max. resolution 4096 x 2304 @ 60Hz)
 VGA : 1x VGA (Max. resolution 1920 x 1200 @ 60Hz)
 Audio Interface : 1x Mic in, 1x Line Out(SPK-OUT)
 Terminal Block : DC12/24V (Option)

                         1x 3pin Terminal Block
 Electrical and
 Operating
 Requorements

 Input : AC100~240V(Adaptor)_ DC12 / 24V(Option)
 Power Consumption : DC12V/10A(120W) or DC12V/5A(120W)
 Operating Temperature : 0℃ ~50℃ (32℉ ~122℉)
 Storage Temperature : -20℃ ~60℃ (-4℉ ~140℉)
 Relative humidity :  0% ~ 90% noncondensing

Anti-Vibration : IEC60068-2-64, IEC60068-2-27

Electrostatic Discharge : EN61000-4-2 / KN32,35 2015 / Contact : 4kV / Air : 8kV

 Installation Methods : Panel mount, VESA mount
 Dimension : 421 x 276 x 80.5
 Cutting Size : 39 x 244 (mm)
 Weight : 8 Kg
 Manufacturer  iNewtek Inc.
 Made in Korea







Ordering information





 Input Voltage  NTP15KF-FHD-IP-12V , NTP15KF-FHD-IP-24V
 UWF  Unified Write Filter
 O/S  Window 7 Pro for Embedded (Kor/Eng) 32bit/64bit
 Window 10 Iot Enterprise 64bit (O/S protection UWF-Option)







Product Assy









※ 정확한 치수는 카다록에서 확인 가능합니다.
