[신제품]NTP24KLF-IP
IPPanel-24KLF-IP
Intel 6th Core i7/ i5 / i3Fanelss Dust-Proof Touch Screen panel PC
24”(1920x1080)_ Color TFT LCD(FULL HD)
KC, CE Certification
제품도면 / 제품세부사양
IP-Panel
IP65 Panel PC
IP-Panel은 전면(front) 방수(Water-Proof)입니다.
음료공장, 육가공 공장 등에서 사용됩니다.
* S-Panel은 육면(Full) IP65입니다.
Features
Specification
| KLF Series | NTP24KLF-IP | NTP24KLF-V11-IP | |
| Display | LCD | 24” LED Backlight LCD/ TFT LCD Panel | |
| Resolution | Full HD 1920 x 1080 (16:9 aspect ratio) | ||
| White Luminance | 300 cd /㎡ | ||
| Contrast Ratio | 1000 | ||
| Touch | Sensor | 5-Wire Resistive | |
| Interface | USB | ||
| System | CPU | Intel 6th Core Skylake | Intel 11th Core Tigerlake |
| Memory | DDR4 4G up to 32G | DDR4 4G up to 64GB | |
| Storage | 2.5” SSD / HDD / M.SATA 128G ~ 1TB / 2TB Select | ||
| Audio | Realtek ACL888S 5-1CH | ||
| Expansion | 1Port / PCIe x4 | ||
| Interface |
Ethernet
|
Intel I219-LM GbE LAN WGI211-AT GbE LAN |
Intel I225-IT 2.5GbE LAN WGI211-AT GbE LAN |
| Serial Port | RS 232 / 485 / 422 Select | ||
| USB | 5xUSB (4xUSB 3.0 / 1xFront USB 2.0) | ||
| HDMI | 4096 x 2160 60Hz | 4096 x 2160 60Hz | |
| DP | 4096 x 2304 60Hz | 4096 x 2160 60Hz | |
| VGA | 1920 x 1200 60Hz | ||
| Terminal Block | 3pin DC 12V (Option : 24V) | ||
| Power | Input Voltage |
AC100 ~ 240V DC12V (Option : 24V) |
|
| Consumption | DC12V /10A (Option : 24V /5A) | ||
| Dimension | 619 x 403 x 107 (mm) | ||
| Panel Cut | 592 x 376 (mm) | ||
Ordering information
| Input Voltage | NTP24KLF-IP-12V , NTP24KLF-IP-24V |
| UWF | Unified Write Filter |
| O/S | Window 10 Iot Enterprise (KOR/ENG) 32/64bit (O/S Protection UWF - Option) Window 7 Pro for Embedded (Kor/Eng) 32bit/64bit |

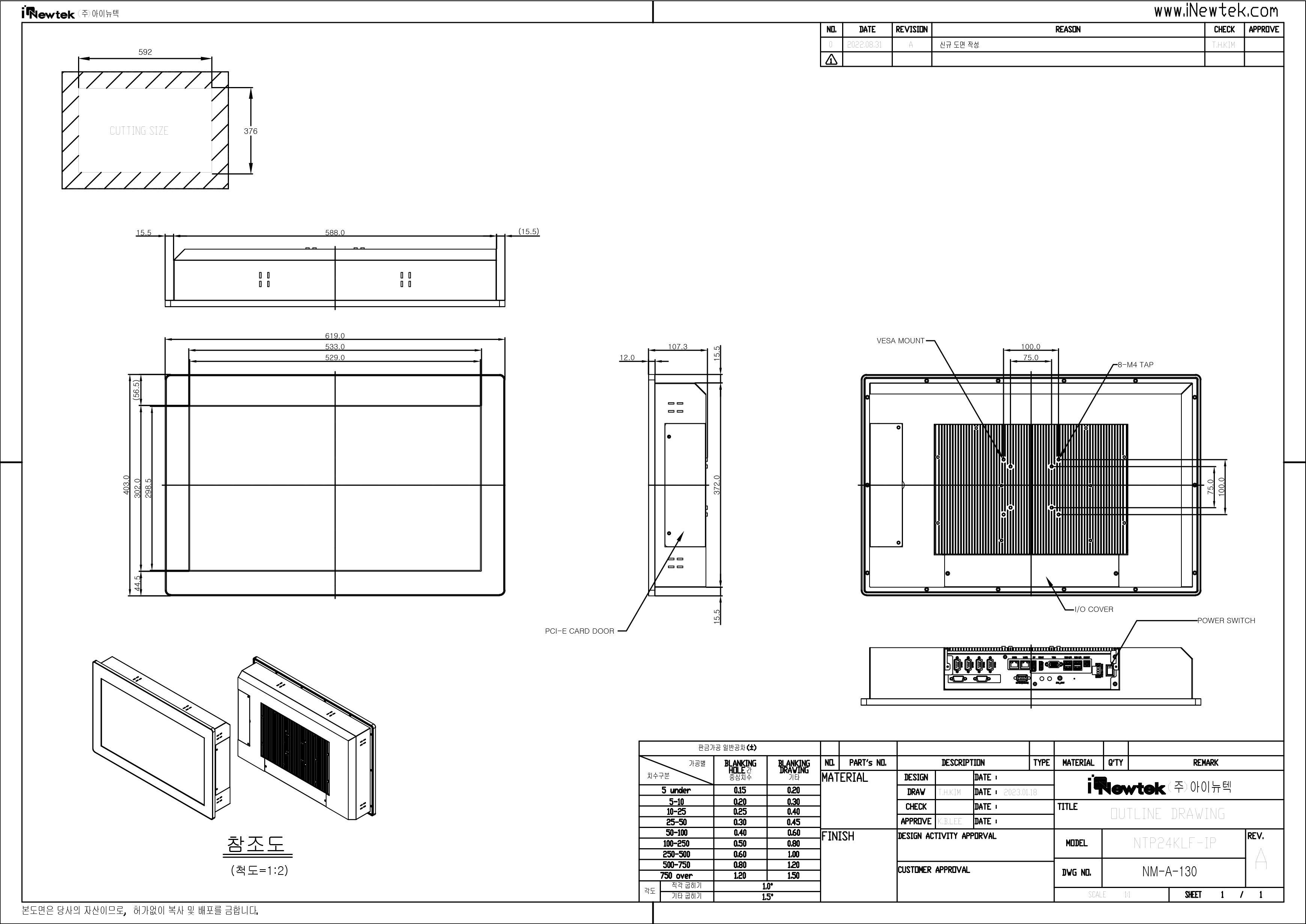

Product Size
※ 정확한 치수는 카달로그에서 확인 가능합니다
