Panel PC


[신제품]NTP15KLF

Dpanel-15KLF

Intel 6th Core i7/ i5 / i3
Fanelss Dust-Proof Touch Screen panel PC
15"(1024x768)_ Color TFT LCD
Slim type
KC, CE Certification
제품도면 / 제품세부사양

D-Panel

Dust-Proof Panel PC

D-Panel은 Fanless를 기본으로 채택 하였으며,Air Vent Hole을

 최소화 하여 외부의 먼지 유입을 차단(Dust-Proof)하였습니다.

먼지가 많고, 고온 다습하며, 열악한 환경에서 사용할 수 있습니다.



Features

Specification

 Display  15” LED Backlight LCD/ TFT LCD Panel
 Resolution : 1024 x 768 (4:3 aspect ratio)
 White Luminance : 300 cd /㎡
 Contrast Ratio : 700
 Touch Screen  5-Wire Resistive
 Touch interface : USB
 System

 Processor : Intel 6th Core i3 / i5 / i7 Skylake CPU
 BIOS : AMI uEFI BIOS, 128Mbit SPI Flash ROM
 System Chipset : Q170
 I/O Chipset : Nuvoton NCT6106D

 Memory : DDR4L 4G (Basic option)
 Two 260-pin SODDIM DDR4L 2133Mhz up to 32G

 Storage : SSD Flash Disk 128G (Basic Option)
 Option : SSD 256G/512G/1TB

 Multi Display : Triple

 Audio Code : Realtek ALC888S, 5.1-CH HD Audio Codec

 DVD-ROM : DVD multi Recorder (option)

 I/O

 Serial Port : 3x RS-232(Basic), (1x RS485 or RS422 Selectable)
 Ethernet : 2xLAN(GbE)
 (LAN1 - Intel I219LM GbE LAN)
 (LAN2 - Intel 82574L GbE LAN <- supports EtherCAT)
 USB : 4x USB 3.0
 HDMI : 1x HDMI (1.4a support max resolution 4096 x 2160

  @30Hz)
 DP : 1x DVI (Max. resolution 4096 x 2304 @ 60Hz)
 VGA : 1x VGA (Max. resolution 1920 x 1200 @ 60Hz)
 Audio Interface : 1x Mic in, 1x Line Out(SPK-OUT)
 Terminal Block : 1x 3pin Terminal Block
                     (DC12~24V, includes F.G pin) (Option)

 Electrical and
 Operating
 Requorements
 Input : AC100~240V(Adaptor) / DC12~24V(Option)
 Power Consumption : DC12V/10A(120W) or DC24V/5A(120W)
 Operating Temperature : 0℃ ~50℃ (32℉ ~122℉)
 Storage Temperature : -20℃ ~60℃
 Relative humidity :  0% ~ 90% noncondensing
 Installation Methods : LUG Bracket, VESA mount
 Dimension : 367 x 295 x 85
 Cutting Size : 345 x 272 (mm)
 Weight : 7.9 Kg
 Manufacturer  iNewtek Inc.
 Made in Korea

Optional

 Wireless LAN  Intel Wireless LAN IEEE 802.11a/b/g/n
 Mini PCI-E Slot
 Power isolation  DC Input Ground(GND) isolation
 O/S  Window 7 Pro for Embedded (Kor/Eng) 32bit/64bit
 Window 10 Iot Enterprise 64bit

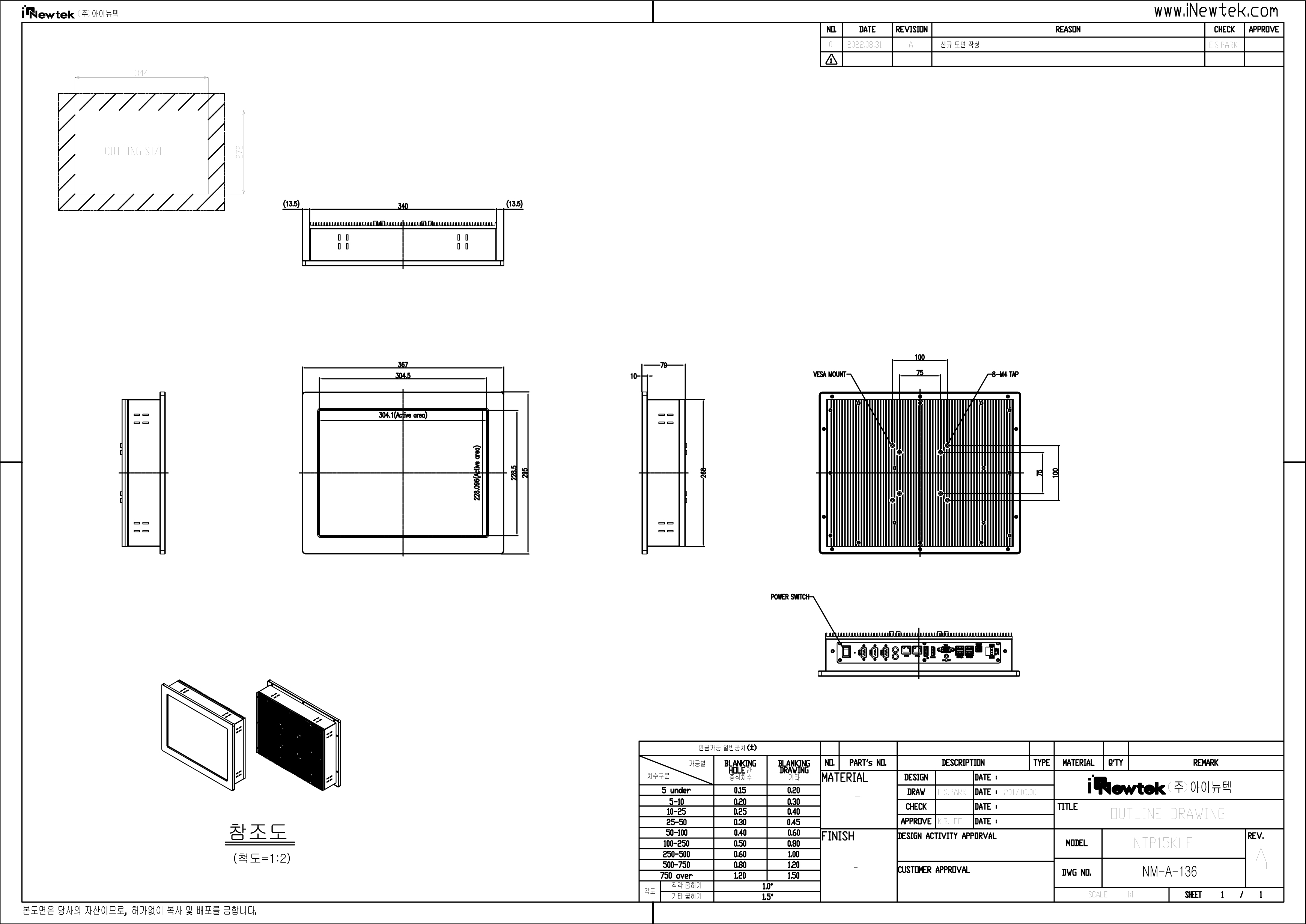

Product Assy

※ 정확한 치수는 카다록에서 확인 가능합니다
