[신제품]NTP15KLF-IP

IPPanel-15KLF-IP

Intel 6th Core i7/i5/i3
Front Stainless Bezel(IP65)
15”(1024x768)_ Color TFT LCD
Fanless Dust-Proof Touch Screen panel PC
KC, CE Certification

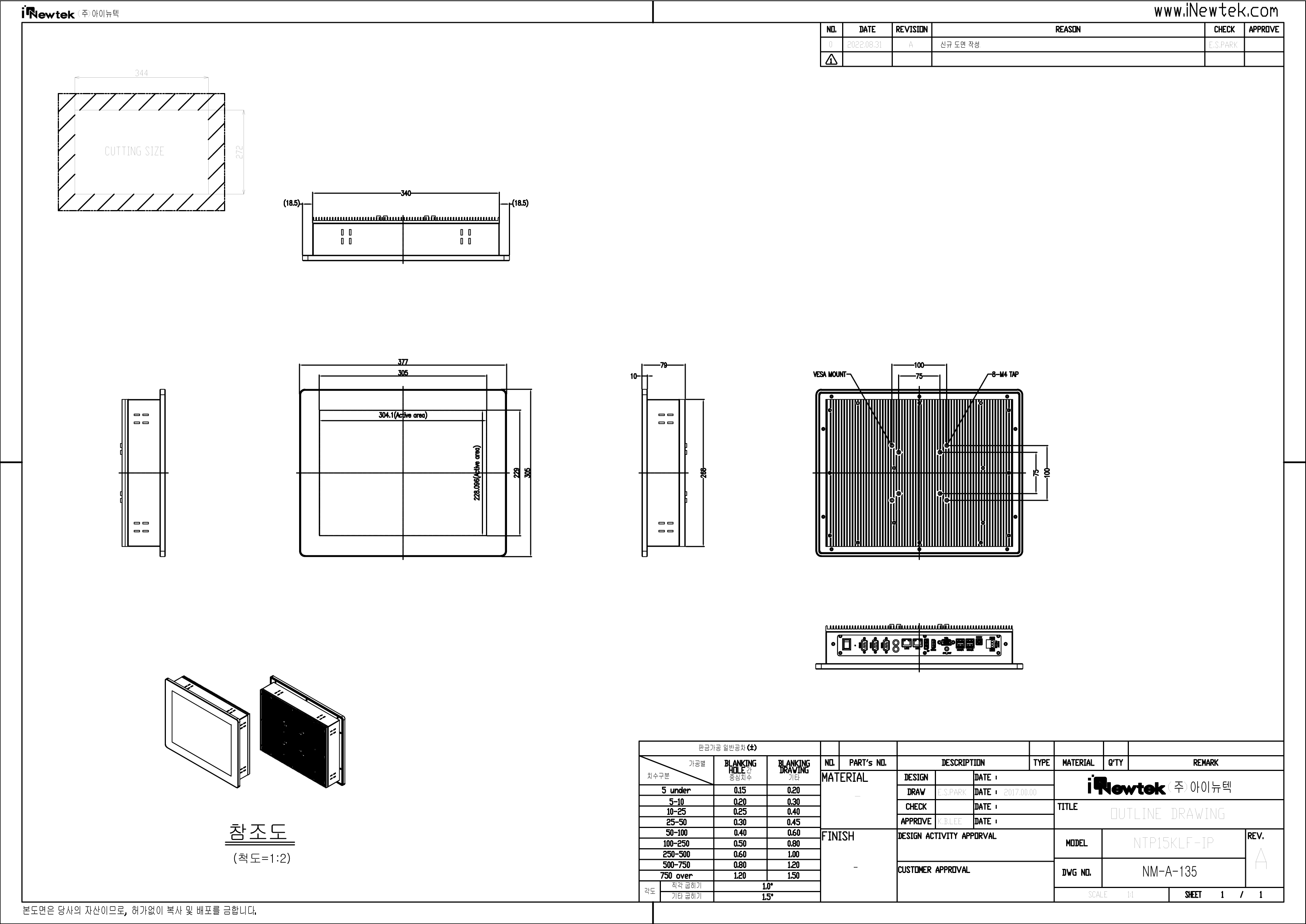

제품도면 / 제품세부사양



IP-Panel



IP65 Panel PC



IP-Panel은 전면(front) 방수(Water-Proof)입니다.

음료공장, 육가공 공장 등에서 사용됩니다.

* S-Panel은 육면(Full) IP65입니다.







Features









Specification





 Display  15” LED Backlight LCD/ TFT LCD Panel
 Resolution : 1024 x 768 (4:3 aspect ratio)
 White Luminance : 300 cd /㎡
 Contrast Ratio : 700
 Touch Screen  5-Wire Resistive
 Touch interface : USB
 System

 Processor : Intel 6th Core i7 / i5 / i3 CPU
 BIOS : AMI uEFI BIOS, 128Mbit SPI Flash ROM
 System Chipset : H110
 I/O Chipset : Nuvoton NCT6106D

 Memory : DDR4 4G (Basic option)
 Two 260-pin SODDIM DDR4L 2133Mhz up to 32G

 Storage : SSD Flash Disk 128G (Basic Option)
 Option : SSD 256G/512G/1TB

 Multi Display : Dual

 Audio Code : Realtek ALC888S, 5.1-CH HD Audio Codec
 I/O

 Serial Port : 3x RS-232 (1x RS485 or RS422 Selectable)
 Ethernet : 2xLAN(GbE)
 (LAN1 - Intel I219LM GbE LAN)
 (LAN2 - Intel 82574L or Intel WGI211AT GbE LAN)
 USB : 5x USB (4x USB 3.0 / 1x Silicon Front USB 2.0)
 HDMI : 1x HDMI (1.4a support max resolution 4096 x 2160

  @60Hz)
 DP : 1x DP (Max. resolution 4096 x 2304 @ 60Hz)
 VGA : 1x VGA (Max. resolution 1920 x 1200 @ 60Hz)
 Audio Interface : 1x Mic in, 1x Line Out(SPK-OUT)
 Terminal Block : DC12/24V (Option) 1x 3pin Terminal Block
 Electrical and
 Operating
 Requorements

 Input : AC100~240V(Adaptor)_ DC12 / 24V (Option)
 Power Consumption : DC12V/10A(120W) or DC24V/5A(120W)
 Operating Temperature : 0℃ ~50℃ (32℉ ~122℉)
 Storage Temperature : -20℃ ~60℃ (-4℉ ~140℉)
 Relative humidity :  0% ~ 90% noncondensing

Anti-Vibration : IEC60068-2-64, IEC60068-2-27

Electrostatic Discharge : EN61000-4-2 / KN32,35 2015 / Contact : 4kV / Air : 8kV

 Installation Methods : Panel mount, VESA mount
 Dimension : 377 x 305 x 79
 Cutting Size : 344 x 272 (mm)
 Weight : 6.7 Kg
 Manufacturer  iNewtek Inc.
 Made in Korea







Ordering information





 Input Voltage  NTP15KLF-IP-12V , NTP15KLF-IP-24V
 UWF  Unified Write Filter
 O/S  Window 7 Pro for Embedded (Kor/Eng) 32bit/64bit
 Window 10 Iot Enterprise 64bit (O/S protection UWF-Option)
