[신제품]NTP17-BF-SUS

SPanel-170B01

Intel® Baytrail-D J1900 2.0Ghz Quad Core SOC
Touch Screen Panel PC(5-wire Resistive)
17" (1280x1024) Color TFT LCD
Fanless Dust-Proof
Stainess / 6-side IP65

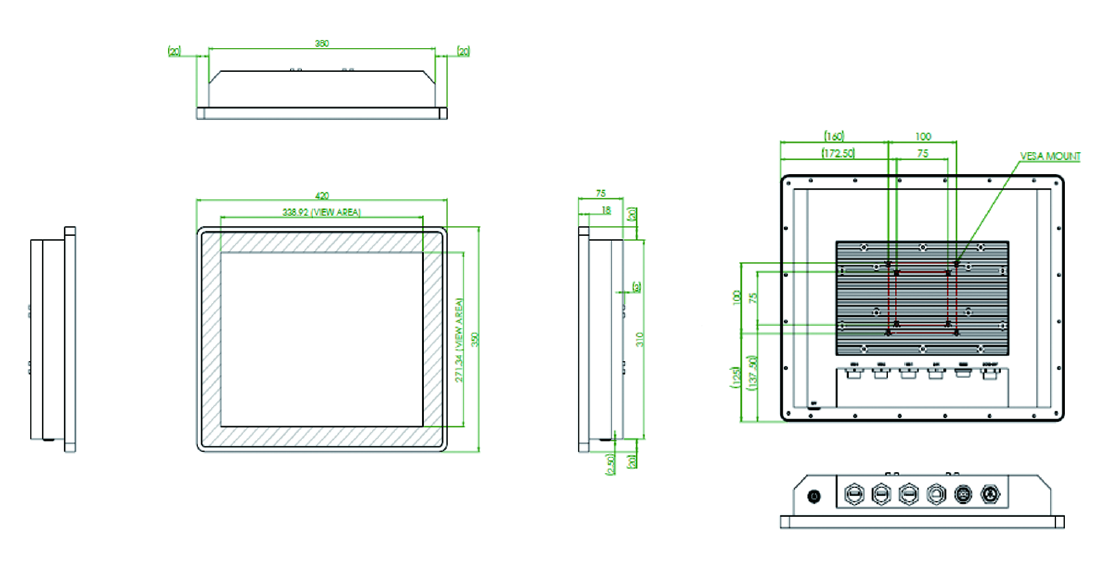

제품도면 / 제품세부사양

S-Panel

Stainless Panel PC

S-Panel은 Stainless Steel의 재질로

구성되었으며 육면 방수(Full IP65)입니다.

식품가공, 제약, 위생시설 및 각종

산업현장에서 사용됩니다.

Specification

Display	17” LED Backlight LCD/ TFT LCD Panel Resolution : 1280 x 1024 (4:3 aspect ratio) White Luminance : 300 cd /㎡ Contrast Ratio : 1000
Touch Screen	Capacitive Touch / Tempered Glass Touch interface : USB
System	Processor : Intel® Baytrail-D J1900 2.0Ghz Quad Core SOC BIOS : AMI uEFI BIOS, 64Mbit SPI Flash ROM System Chipset : Valleyview SoC Integrated I/O Chipset : NCT6106D(Nuvoton) Memory : DDR3L 4G (Basic option) One 204-pin SODIMM DDR3L 1066/1333 Mhz Up to 8GB Storage : SSD Flash Disk 128G(MLC)(Basic Option) Option : SSD 256G/SDD 500G/SDD 1TB Audio Code : Realtek ALC888S Support 5.1-CH Audio DVD-ROM : No.
I/O	Serial Port : 1x RS-232 Ethernet : 1xLAN(GbE) USB : 3x USB (1x USB3.0 / 2x USB 2.0)
Electrical and Operating Requorements	Input : AC100~240V(Adaptor) Output : DC12V/5A(60W) Operating Temperature : 0℃ ~50℃ (32℉ ~122℉) Storage Temperature : -20℃ ~60℃ (-4℉ ~140℉) Relative humidity : 0% ~ 90% noncondensing Anti-Vibration : IEC60068-2-64, IEC60068-2-27 Electrostatic Discharge : EN61000-4-2 / KN32,35 2015 / Contact : 4kV / Air : 8kV Dimension : 420 x 390 x 75 Cutting Size : 380 x 310 (mm) Weight : 8.5 Kg
Manufacturer	iNewtek Inc. Made in Korea

Optional

O/S

Window 7 Pro for Embedded (Kor/Eng)32/64bit

Window 10 Iot Enterprise 64bit (O/S protection UWF-Option)

Product Assy

※자세한 치수는 카탈로그 참조 부탁드립니다.
