Panel PC

Panel PC


NTP15-BF(IP)

DPanel-150B02

Intel® Baytrail-D J1900 2.0Ghz Quad Core SOC
Touch Screen panel PC
15"(1024x768)_ Color TFT LCD
Low Power / Low Heat
Fanless Dust-Proof
제품도면 / 제품세부사양



D-Panel



Dust-Proof Panel PC



D-Panel은 Fanless를 기본으로 채택 하였으며,Air Vent Hole을

 최소화 하여 외부의 먼지 유입을 차단(Dust-Proof)하였습니다.

먼지가 많고, 고온 다습하며, 열악한 환경에서 사용할 수 있습니다.









Features













Specification







 Display  15” LED Backlight LCD/ TFT LCD Panel
 Resolution : 1024 x 768 (4:3 aspect ratio)
 White Luminance : 300 cd /㎡
 Contrast Ratio : 700
 Touch Screen  5-Wire Resistive
 Touch interface : USB
 System

 Processor : Intel® Baytrail-D J1900 2.0Ghz Quad Core SOC
 BIOS : AMI uEFI BIOS, 64Mbit SPI Flash ROM
 System Chipset : Valleyview SoC Integrated
 I/O Chipset : NCT6106D(Nuvoton)
 Memory : DDR3L 4G (Basic option)
 One 204-pin SODIMM DDR3L 1066/1333 Mhz Up to 8GB
 Storage : SSD Flash Disk 128G(MLC)(Basic Option)
 Option : SSD 256G/SDD 500G/SDD 1TB
 Audio Code : Realtek ALC888S Support 5.1-CH Audio
 DVD-ROM : No.
 Expansion : 1 x Mini PCIe
 I/O

 Serial Port : 4x RS-232 / 1x RS485 (Basic)
 Ethernet : 2xLAN(GbE)
 (LAN1 - Realtek RTL8111E)
 (LAN2 - Intel WGI211AT GbE LAN)
 USB : 5x USB (1x USB3.0 / 4x USB 2.0)
 HDMI : 1x HDMI (1.3 support max resolution 1920x1200@ 60Hz)
 VGA : 1x VGA(Max. resolution 1920 x 1200 @ 60Hz)
 Audio Interface : 1x Speaker jack
 Terminal Block : DC12/24V (Option)

                         1x 2pin Terminal Block
 Electrical and
 Operating
 Requorements

 Input : AC100~240V(Adaptor)_ DC12 / 24V(Option)
 Output : DC12V/5A(60W)
 Operating Temperature : 0℃ ~50℃ (32℉ ~122℉)
 Storage Temperature : -20℃ ~60℃ (-4℉ ~140℉)
 Relative humidity :  0% ~ 90% noncondensing

Anti-Vibration : IEC60068-2-64, IEC60068-2-27

Electrostatic Discharge: EN61000-4-2 / KN32,35 2015 / Contact : 4kV / Air : 8kV

 Installation Methods : Panel mount

 VESAMOUNT : 75x75 / 100x100
 Dimension : 380 x 334 x 98.5
 Cutting Size : 355 x 309 (mm)
 Weight :  5 Kg
 Manufacturer  iNewtek Inc.
 Made in Korea









Optional







 Wireless LAN  Intel Wireless LAN IEEE 802.11a/b/g/n
 Mini PCI-E Slot

 O/S  Window 7 Pro for Embedded (Kor/Eng) 32bit/64bit
 Window 10 Iot Enterprise 64bit (O/S protection UWF-Option)

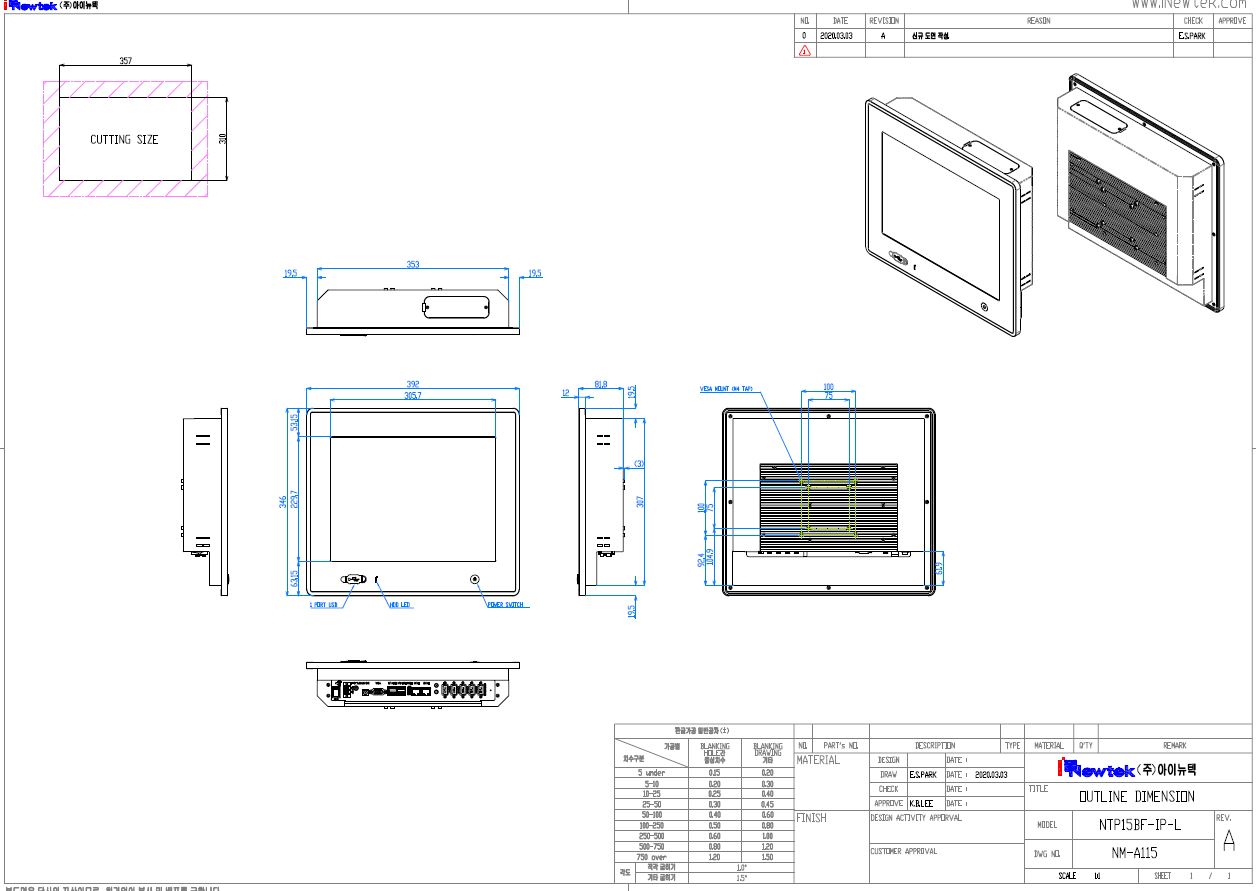

Product Assy











※ 자세한 치수는 카달로그에서 확인 가능합니다
