[New]NTP17-BF-SUS

SPanel-170B01

Intel® Baytrail-D J1900 2.0Ghz Quad Core SOC
Touch Screen Panel PC(5-wire Resistive)
17" (1280x1024) Color TFT LCD
Fanless Dust-Proof
Stainess / 6-side IP65

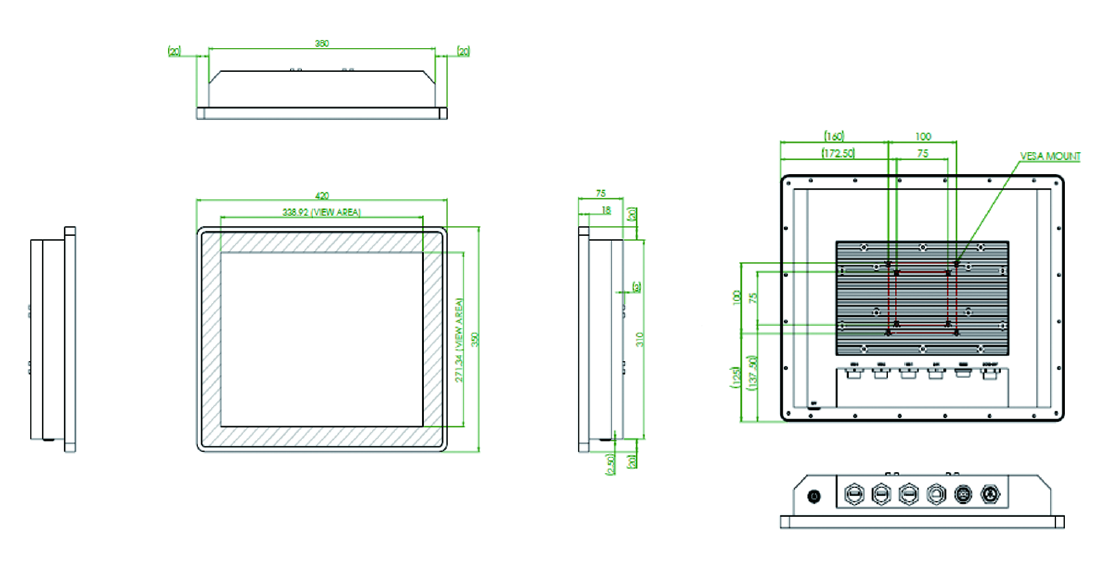

Product Drawings / Product Detail

S-Panel

S-Panel, made of Stainless Steel, is Full IP65.

The product can be used in food processing, pharmaceutical, sanitary, and other industrial sites.



Specification

 Display  17” LED Backlight LCD/ TFT LCD Panel
 Resolution : 1280 x 1024 (4:3 aspect ratio)
 White Luminance : 300 cd /㎡
 Contrast Ratio : 1000
 Touch Screen  Capacitive Touch / Tempered Glass
 Touch interface : USB
 System

 Processor : Intel® Baytrail-D J1900 2.0Ghz Quad Core SOC
 BIOS : AMI uEFI BIOS, 64Mbit SPI Flash ROM
 System Chipset : Valleyview SoC Integrated
 I/O Chipset : NCT6106D(Nuvoton)
 Memory : DDR3L 4G (Basic option)
 One 204-pin SODIMM DDR3L 1066/1333 Mhz Up to 8GB
 Storage : SSD Flash Disk 128G(MLC)(Basic Option)
 Option : SSD 256G/SDD 500G/SDD 1TB
 Audio Code : Realtek ALC888S Support 5.1-CH Audio
 DVD-ROM : No.
 I/O

 Serial Port : 1x RS-232

 Ethernet : 1xLAN(GbE)
 USB : 3x USB (1x USB3.0 / 2x USB 2.0)
 Electrical and
 Operating
 Requorements

 Input : AC100~240V(Adaptor)
 Output : DC12V/5A(60W)
 Operating Temperature : 0℃ ~50℃
 Storage Temperature : -20℃ ~60℃
 Relative humidity :  0% ~ 90% noncondensing
 Dimension : 420 x 390 x 75
 Cutting Size : 380 x 310 (mm)
 Weight :  8.5 Kg
 Manufacturer  iNewtek Inc.
 Made in Korea



Optional


 O/S

 Window 7 Pro for Embedded (Kor/Eng)32/64bit

 Windows 10 IoT Enterprise 32/64bit



Product Assy
