Processor : Intel 6th Core i3 / i5 / i7 Skylake CPU
 BIOS : AMI uEFI BIOS, 128mbit SPI Flash ROM
 System Chipset : H110
 I/O Chipset : Nuvoton NCT6106D
 Memory : DDR4 4G (Basic option)
 Two 260-pin SODDIM DDR4L 2133Mhz up to 32G
 Storage : SSD Flash Disk 128G (Basic option)
 Option : SSD128G/SSD 256G/SSD 500G/SSD 1TB
 Audio Code : Realtek ALC888S Support 5.1-CH Audio
 Expansion : 1x PCie /  Multi Display : Dual

 Serial Port :  4x RS-232, 1x RS485, 1x RS422

 Ethernet : 2xLAN(GbE)
 (LAN1 - Intel I219LM GbE LAN)
 (LAN2 - Intel 82574L GbE LAN <- supports EtherCAT)
 USB : 5x USB (4x USB3.0 / 1x Silicon Front USB 2.0)
 HDMI : 1x HDMI (1.4 support max resolution 4096x2160@ 30Hz)

 DP : 1x DP (max. resolution 4096 x 2304 @ 60Hz)
 VGA : 1x VGA(Max. resolution 1920 x 1200 @ 60Hz)
 Audio Interface : 1x Mic in, 1x Line Out(SPK-OUT)
 Terminal Block : 1x 3pin Terminal Block (DC12 or 24V)

 Input : AC100~240V(Adaptor) / DC12~24V(Terminal Block)
 Operating Temperature : -10℃ ~60℃
 Storage Temperature :  -20℃ ~60℃
 Relative humidity : 0% ~ 90% noncondensing

Anti-Vibration : IEC60068-2-64, IEC60068-2-27

Electric Discharge : EN61000-4-2 / KN32,35 2015 / Contact : 4kV / Air : 8kV

 Installation Methods : Wallmount Bracket

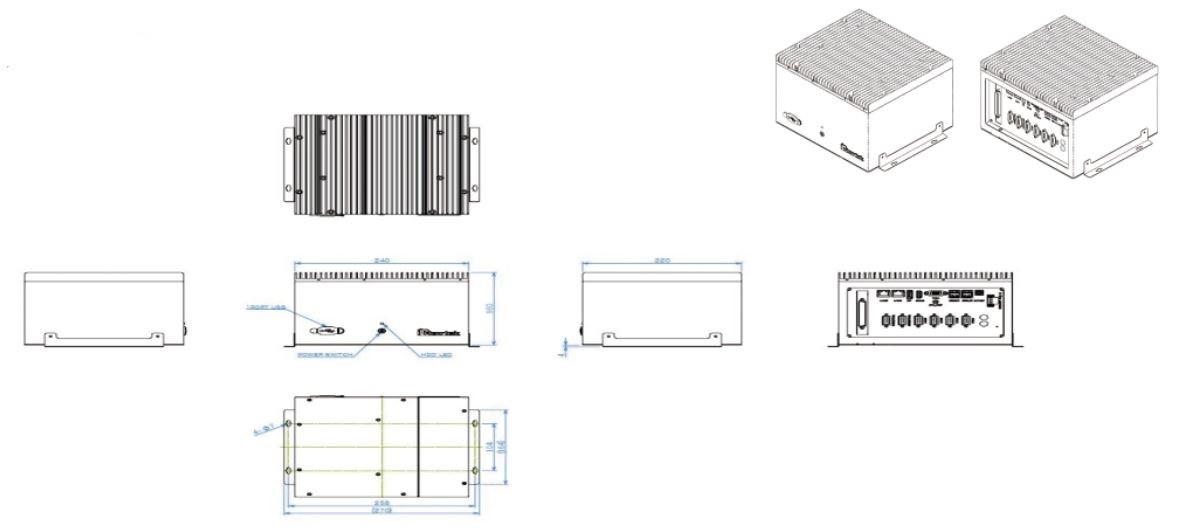

 Dimesion : 240x220x160 mm
 Weight :  5.5 Kg

 iNewtek Inc.
 Made in Korea
